Double Side Milling Machine
BH-450NCS
Fully automatic four-sided machining with chamfering function
Quantity:

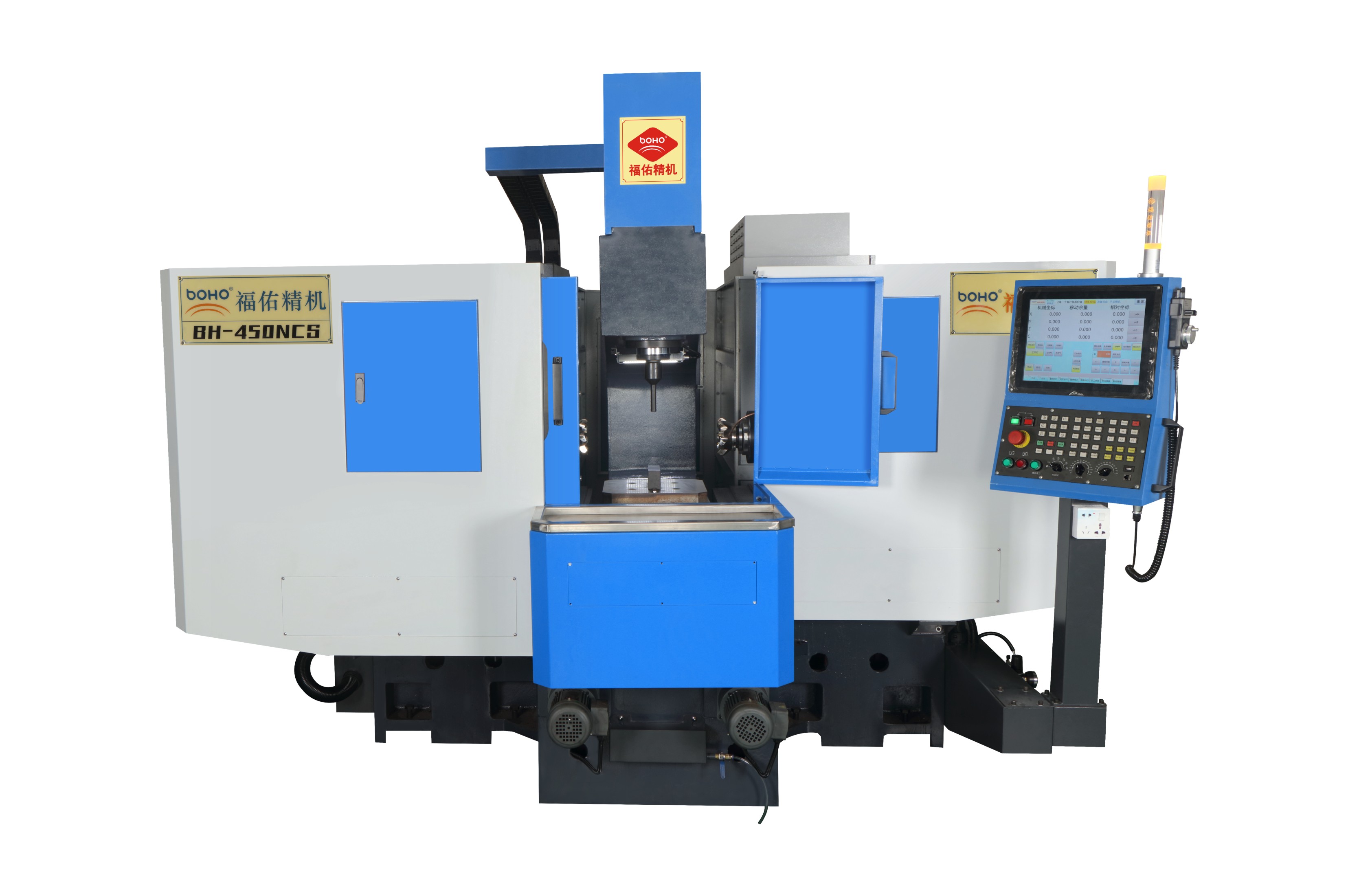

BOHO Double Side Milling Machine

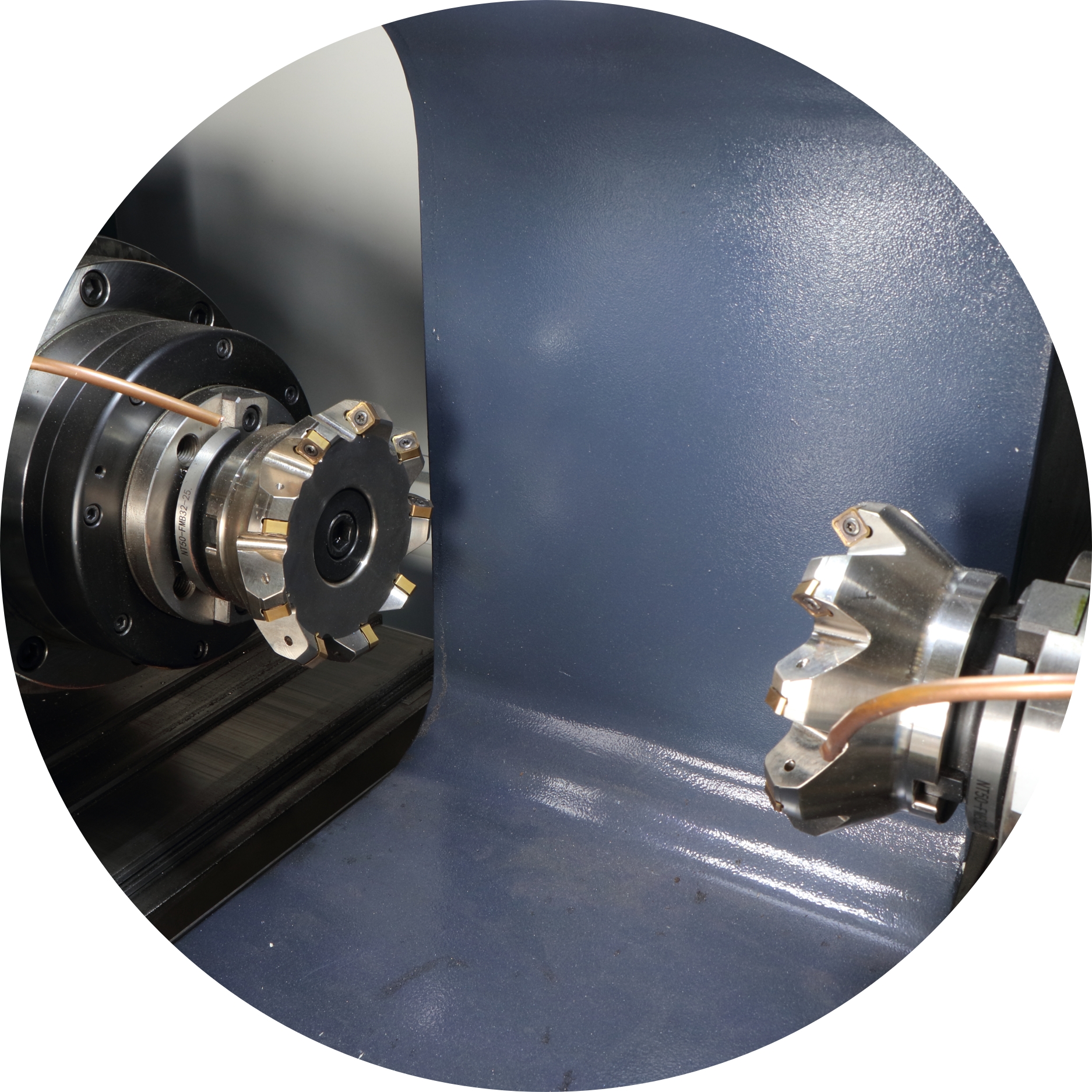

Horizontal milling machine with two head
BH-450NCS
Advantages of BOHO double side milling
- 4-sides processing only need once loaded.
- Capable of milling almost all square materials.
- Flat, square and parallel tolerances of 0.02/200mm.
- With chamfering function
Items | unit | BH-450NCS | ||
Capability | Control Axis | 4 | ||
One time cutting capacity | mm | 2*2 | ||
Work Range | mm | 20-450 | ||
Worktable | Worktable Size | mm | 330*330 | |
Max Loading Weight | KG | 400 | ||
Spindle | Spindle Speed | rpm | 500-1500 | |
Spindle Power | KW | 11x1500spins | ||
Axis diameter | mm | 47.625 | ||
Cutter Diameter | mm | 125 | ||
X/Y/Z Axis | X/Y/Z Servo motor | KW | 2/2/2 | |
X/Y/Z Max rapid feed speed | M/min | 9/9/9 | ||
X/Y/Z Max Cutting feed Rate | Mm/min | 500/500/500 | ||
Accuracy | mm/200mm | 0.02 | ||
Power Source | Power | / | AC380V/220 | |
cover area | length×width | m | 3*3 | |
Weight | Machine weight | KG | 6000 | |
BOHO Machinery double-sided milling can be carried out on any of the following materials:
- Steel
- Stainless steel
- Tool steels
- Hot work die steel
- Cold work tool steel
- Plastic mold steel
- Raw metal
- Aluminum
- Ferrous or non-ferrous metals
- Cast iron
- Mold plate
- other four-sided square metal
