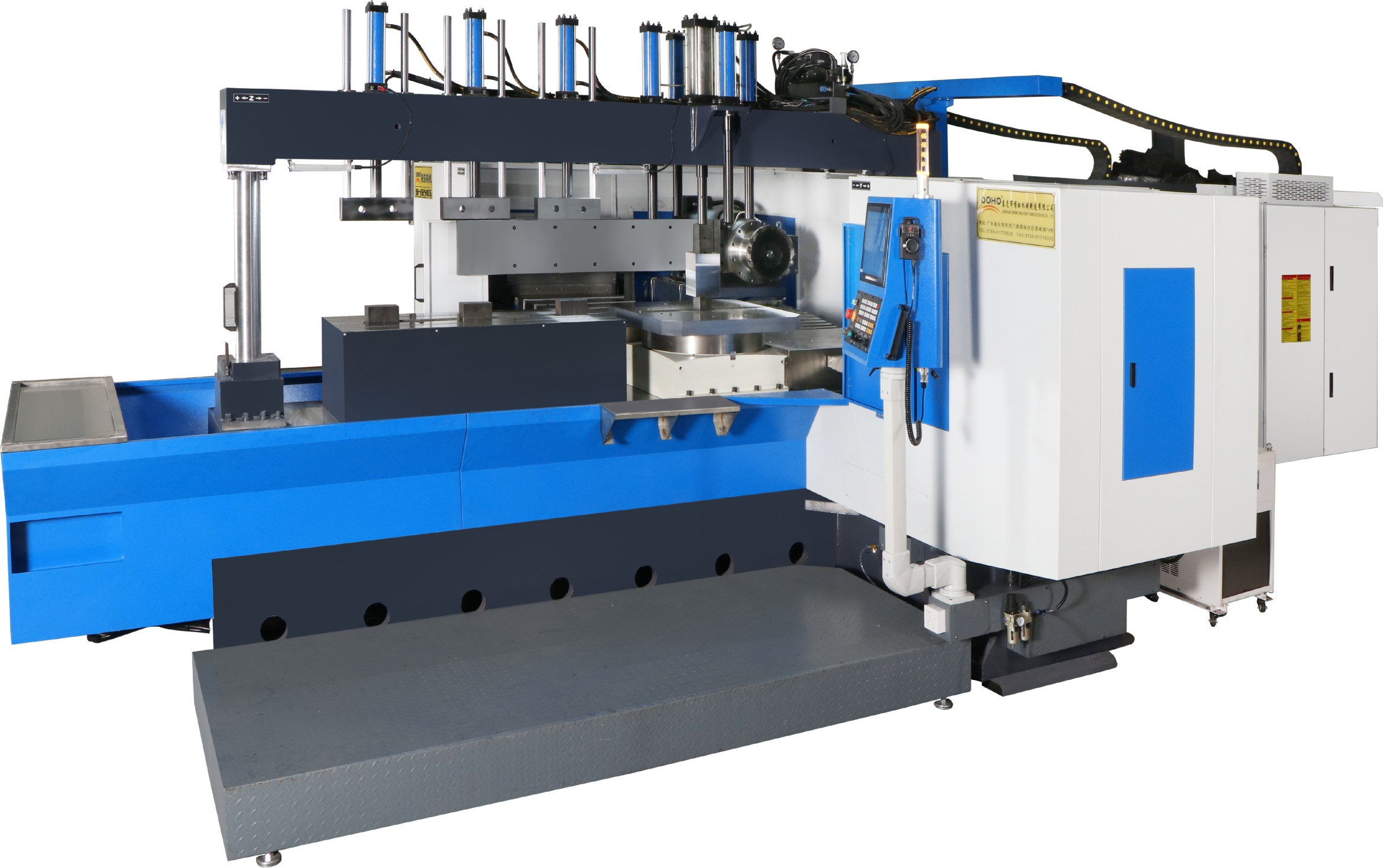

Double Side Milling Machine

BH-1325NCD

Quantity:

Contact Now

add to cart

Double Side Milling Machine

Horizontal Milling

BH-1325NCD

Items		Unit	BH-1325NCD	Remark
Controlling method		/	4Axis CNC control（Handle wheel control）
Material of the bed		/	cast iron HT250-300
Spindle/Milling head		/	Electricspindle
Guide way		/	High-frequency hardened guideway

Capability	Max cutting capacity	mm	2*5	50# steel
	Rotatable processing range	mm	100 - 1300
	Non-rotating processing range	mm	100 - 2500
	Turntable size	mm	*780780**
	Max Loading Weight of Turntable	KG	3500
Servo motor	Z axis(work table）	KW	7.5
	X/Y axis（feeding）	KW	2.3
	C axis（rotary table）	KW	4.4
	X/Y/Z axis rapid speed	mm/min	4000/8000
Electric Spindle Parameters	Spindle motor（power）	KW	*22KW2（1140N)**
	Transmissionmethod	/	CNC stepless variable speed
	Maximum milling head speed	rpm	300
	Cutter specification	mm	Ø300
Other	cover area	mm	*900048002800*
	Machine weight	KG	24000
	Incoming power cable	/	Three-phase four-core / national standard 16 square / air switch100A

You can choose LNC, MITSUBISHI or FANUC Controller as you like.

BOHO Machinery double-sided milling can be carried out on any of the following materials:

Steel
Stainless steel
Tool steels
Hot work die steel
Cold work tool steel
Plastic mold steel
Raw metal
Aluminum
Ferrous or non-ferrous metals
Cast iron
Mold plate
other four-sided square metal

BOHO MACHINERY (DONGGUAN) CO., LTD. offers a wide selection of cnc lathe machine, milling, and grinding equipment—and provides comprehensive one-stop customization, cnc machine training, and competitive factory pricing. Inquire now for complete CNC solutions.
