Double Side Milling Machine

BH-1300NC

Advantages of BOHO double side milling
4-sides processing only need once loaded.
Capable of milling almost all square materials.
Flat, square and parallel tolerances of 0.02/200mm.
With chamfering function

Quantity:

Contact Now

add to cart

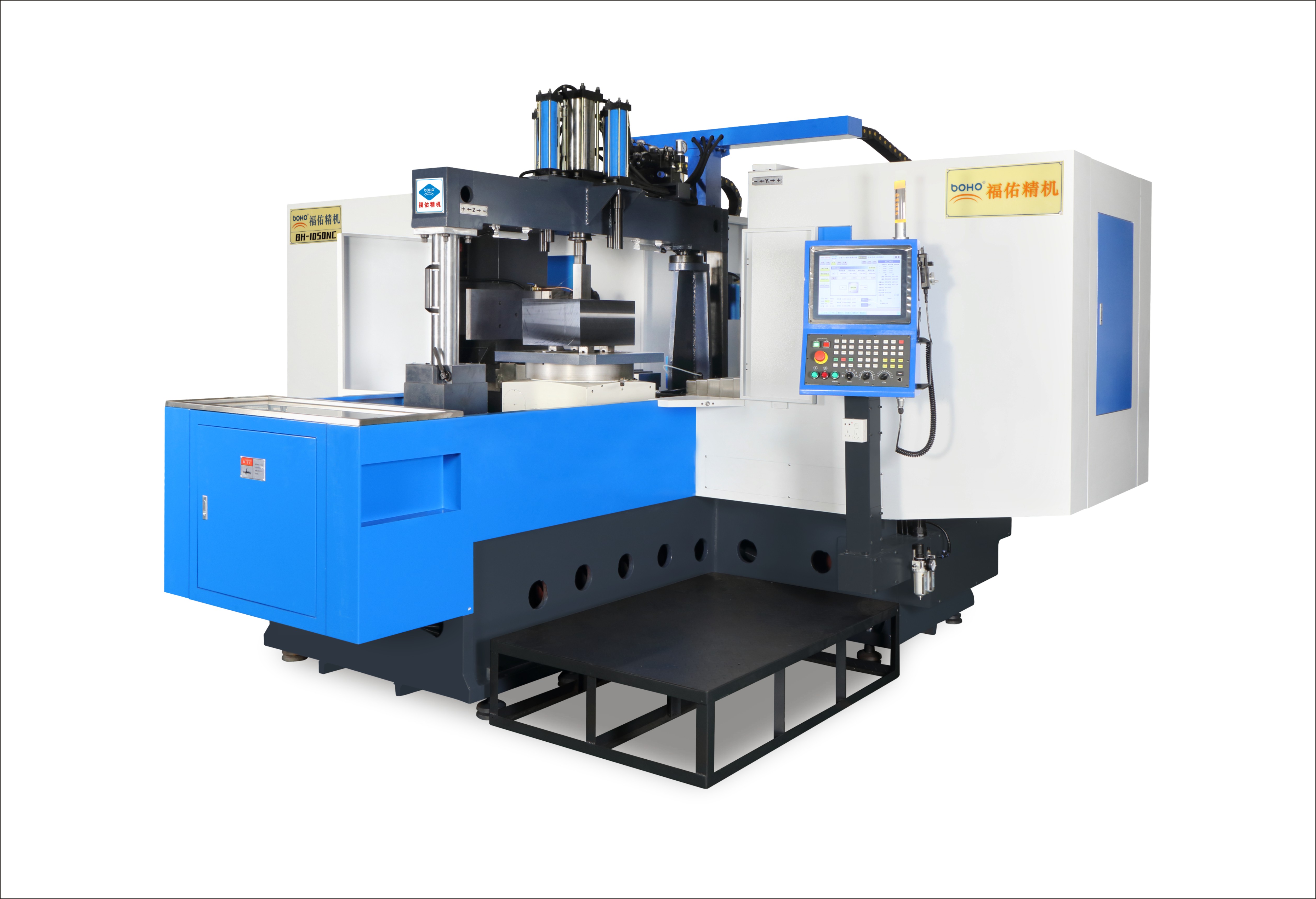

BOHO Double Side Milling Machine

Horizontal milling machine with two head

BH-1300NC

Advantages of BOHO double side milling

4-sides processing only need once loaded.
Capable of milling almost all square materials.
Flat, square and parallel tolerances of 0.02/200mm.
With chamfering function

Items		unit	BH-1300NC
Capability	Control Axis		4
	One time cutting capacity	mm	2*2
	Work Range	mm	100 -1300
Worktable	Worktable Size	mm	*780780**
	Max Loading Weight	KG	4000
Spindle	Spindle Speed	rpm	500
	Spindle Power	KW	15
	Axis diameter	mm	47.625
	Cutter Diameter	mm	300
X/Y/Z Axis	X/Y/Z Servo motor	KW	2.3/2.3/4.4
	X/Y/Z Max rapid feed speed	M/min	7/7/7
	X/Y/Z Max Cutting feed Rate	Mm/min	500/500/500
	Accuracy	mm/200mm	0.02
Power Source	Power	/	AC380V/220
cover area	length×width	m	*5.84.8**
Weight	Machine weight	KG	16000

BOHO Machinery double-sided milling can be carried out on any of the following materials:

Steel
Stainless steel
Tool steels
Hot work die steel
Cold work tool steel
Plastic mold steel
Raw metal
Aluminum
Ferrous or non-ferrous metals
Cast iron
Mold plate
other four-sided square metal

Wide Selection of CNC Machines for Sale – BOHO MACHINERY (DONGGUAN) CO., LTD. specializes in Milling Machines and Grinding Machines, with years of industry expertise. We provide one-stop customization services at competitive factory prices. Additionally, we offer professional CNC machine training to help you maximize efficiency. Get your inquiry now!
