Double Side Milling Machine

BH-1300NCD

Advantages of BOHO double side milling
4-sides processing only need once loaded.
Capable of milling almost all square materials.
Flat, square and parallel tolerances of 0.02/200mm.
With chamfering function

Quantity:

Contact Now

add to cart

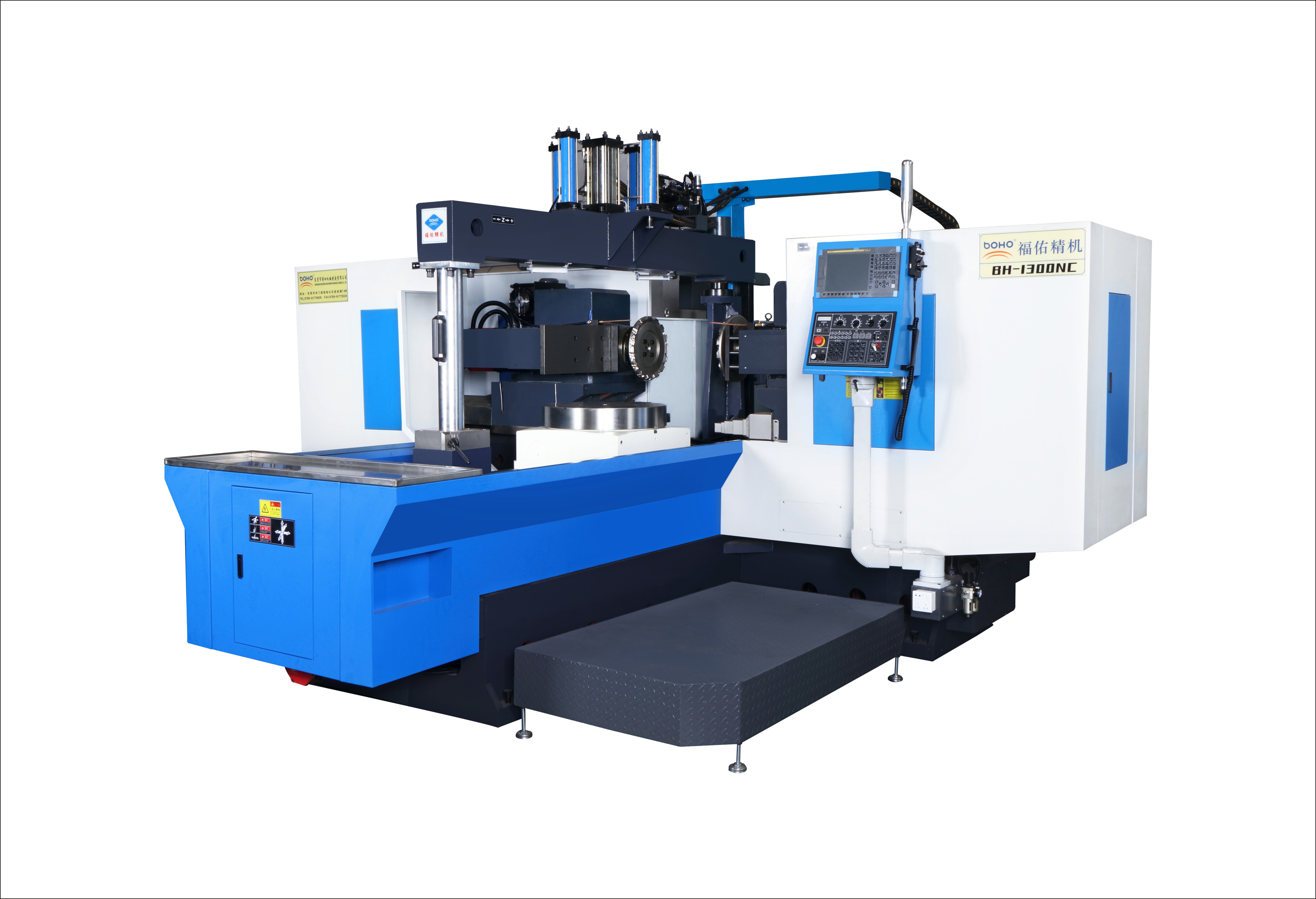

BOHO Double Side Milling Machine

Horizontal milling machine with two head

BH-1300NCD

Advantages of BOHO double side milling

4-sides processing only need once loaded.
Capable of milling almost all square materials.
Flat, square and parallel tolerances of 0.02/200mm.
With chamfering function

Items		Unit	BH-1300NCD	Remark
Controlling method		/	4Axis CNC control（Handle wheel control）
Material of the bed		/	cast iron HT250-300
Spindle/Milling head		/	Electricspindle
Guide way		/	High-frequency hardened guideway

Capability	Max cutting capacity	mm	2*5	50# steel
	Range of workpiece size	mm	80-1300
	Worktable size	mm	*780780**
	Max Loading Weight	KG	3500
Servo motor	Z axis(work table）	KW	5.5
	X/Y axis（feeding）	KW	2.3
	C axis（rotary table）	KW	4.4
	X/Y/Z axis rapid speed	mm/min	4000/8000
Electric Spindle Parameters	Spindle motor（power）	KW	*24KW2（1140N)**
	Transmissionmethod	/	CNC stepless variable speed
	Maximum milling head speed	rpm	300
	Cutter specification	mm	Ø300
Other	cover area	mm	*580048002800*
Other	Machine weight	KG	18000

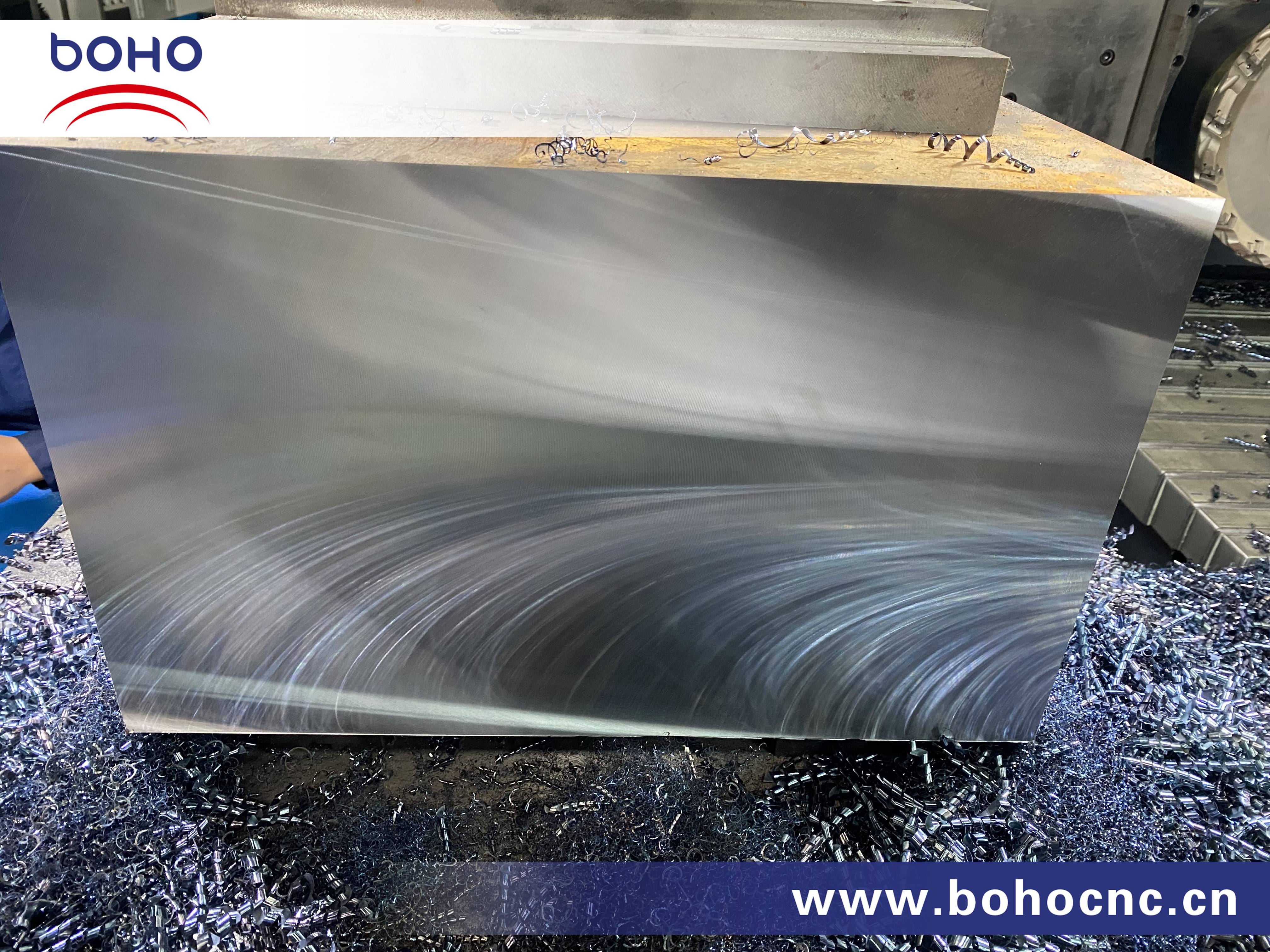

BOHO Machinery double-sided milling can be carried out on any of the following materials:

Steel
Stainless steel
Tool steels
Hot work die steel
Cold work tool steel
Plastic mold steel
Raw metal
Aluminum
Ferrous or non-ferrous metals
Cast iron
Mold plate
other four-sided square metal
