CNC Gantry Milling Machine

BH-1830MAS

3 Axis CNC Vertical Milling Machine
Automatic Measurement & Cutting

Quantity:

Contact Now

add to cart

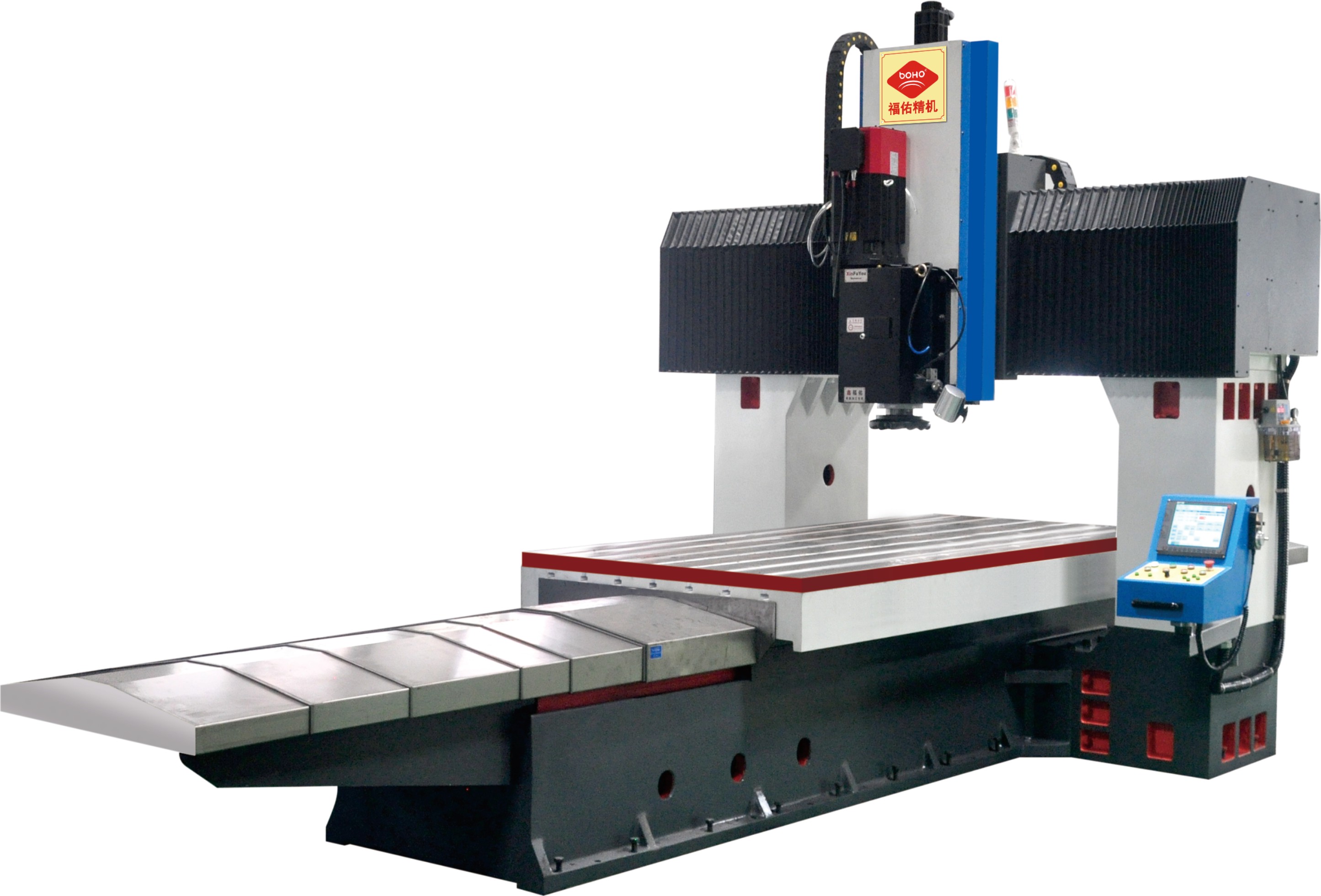

BOHO CNC Gantry Milling Machine

CNC Vertical milling machine

BH-1830MAS

Advantages of BOHO vertical milling

Automatically measure, automatically processing and excellent surface performance.
One loading and one setting needed only is helpful to shorten the preparation time.
Mainly used for pre-squared steel pate and non-ferrous metal materials for flat surface.
Maintain high accuracy for dimension, squareness and parallelism.

Item		Unit	BH-1830MAS
Size Parameter	Max milling area	mm	3000*1800
	Max height of milling	mm	600
	Worktable size	mm	3000*1400
	Max weight of milling	mm	1800
Three-axis Servo Motor	X axis servo motor	N·m	38
	Y axis servo motor	N·m	15
	Z axis servo motor	N·m	15
Feed Speed	X axis feed speed	M/min	0~6
	Y axis feed speed	M/min	0~3
	Z axis feed speed	M/min	0~3
Milling Head Parameter	Power	KW	15
	Variable gear position	/	CVT
	Milling head speed	rpm	0~500
	Spindle taper	/	BT50
Other Parameter	Load	KG	10000
	cover area	mm	8500*3600
	Overall height of machine tool	mm	3200
	Machine weight	kg	22000

BOHO Machinery vertical milling can be carried out on any of the following materials:
