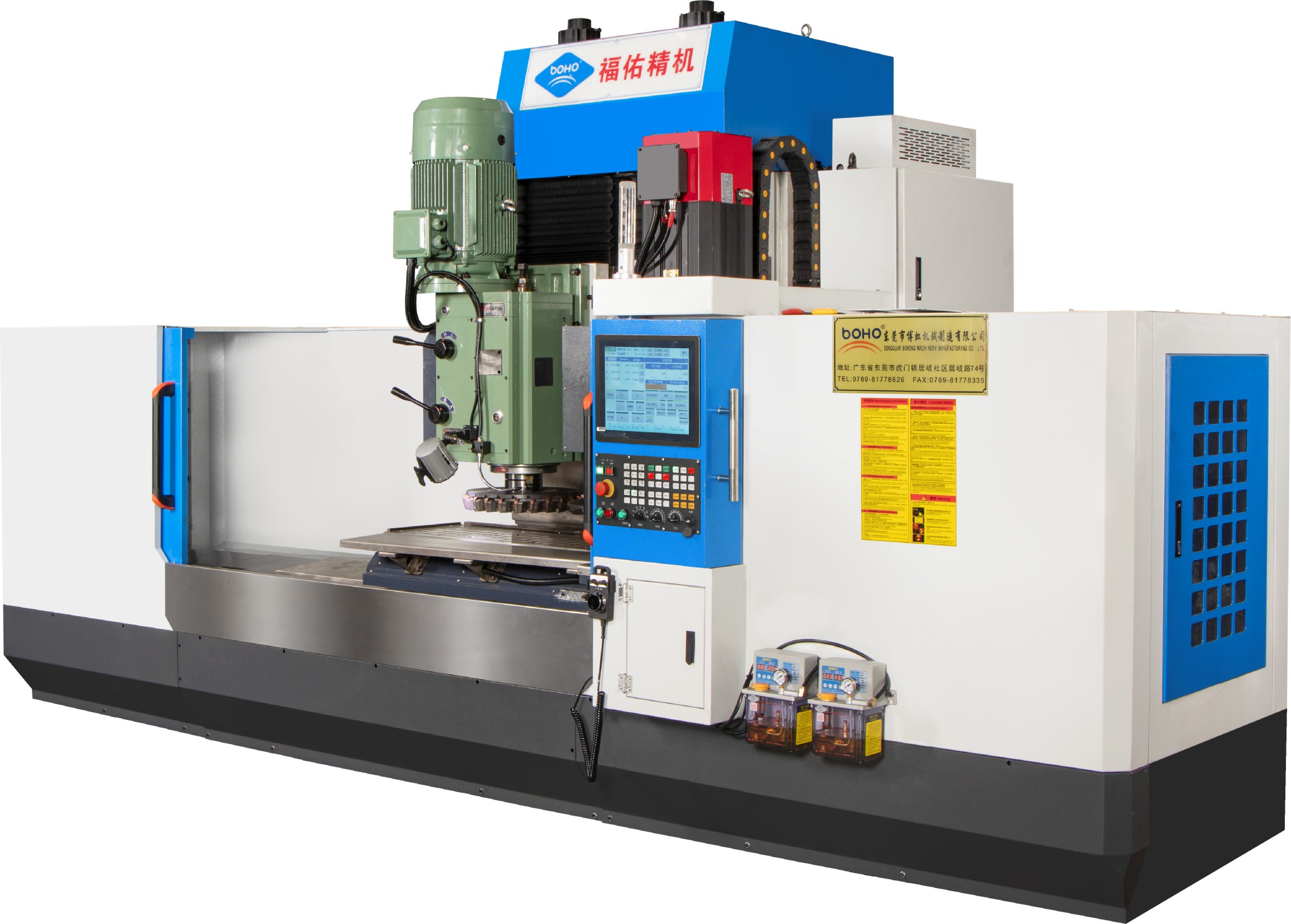

CNC Surface Milling Machine

BH-8040

Advantages of BOHO vertical milling
Automatically measure, automatically processing and excellent surface performance.
One loading and one setting needed only is helpful to shorten the preparation time.
Mainly used for pre-squared steel pate and non-ferrous metal materials for flat surface.
Maintain high accuracy for dimension, squareness and parallelism.

Quantity:

Contact Now

add to cart

BOHO CNC Surface Milling Machine

CNC Vertical milling machine

BH- 8040

Advantages of BOHO vertical milling

Automatically measure, automatically processing and excellent surface performance.
One loading and one setting needed only is helpful to shorten the preparation time.
Mainly used for pre-squared steel pate and non-ferrous metal materials for flat surface.
- Maintain high accuracy for dimension, squareness and parallelism.

Item		Unit	BH-8040
Size Parameter	Max milling range	mm	*800400**
	Max height of milling	mm	300
	Worktable size	mm	*800600**
	Magnetic chuck size	mm	*800300 (2pieces)**
Servo Motor	Y axis servo motor	kw	2
	Z axis servo motor	kw	1.8
	Rotary table servo motor	kw	3
RoughMilling Head Parameter	Power	kw	30
	Cutter size	mm	Ø400
	Milling head speed	rpm	0~500
	Spindle taper	/	BT50
Finish Milling Head Parameter	Power	kw	22
	Cutter size	mm	Ø400
	Milling head speed	rpm	0~1500
	Spindle taper	/	BT50
Other Parameter	Load	KG	2000
	cover area	mm	*30003000**
	Overall height of machine tool	mm	3000
	Machine weight	kg	9000

BOHO Machinery vertical milling can be carried out on any of the following materials:

Steel
Stainless steel
Tool steels
Hot work die steel
Cold work tool steel
Plastic mold steel
Raw metal
Aluminum
Ferrous or non-ferrous metals
Cast iron
Mold plate

BOHO MACHINERY (DONGGUAN) CO., LTD. offers a wide selection of CNC machines, specializing in milling and grinding equipment for cnc machine shop, and provides complete one-stop customization at competitive factory prices—find your local CNC solution and inquire now.
