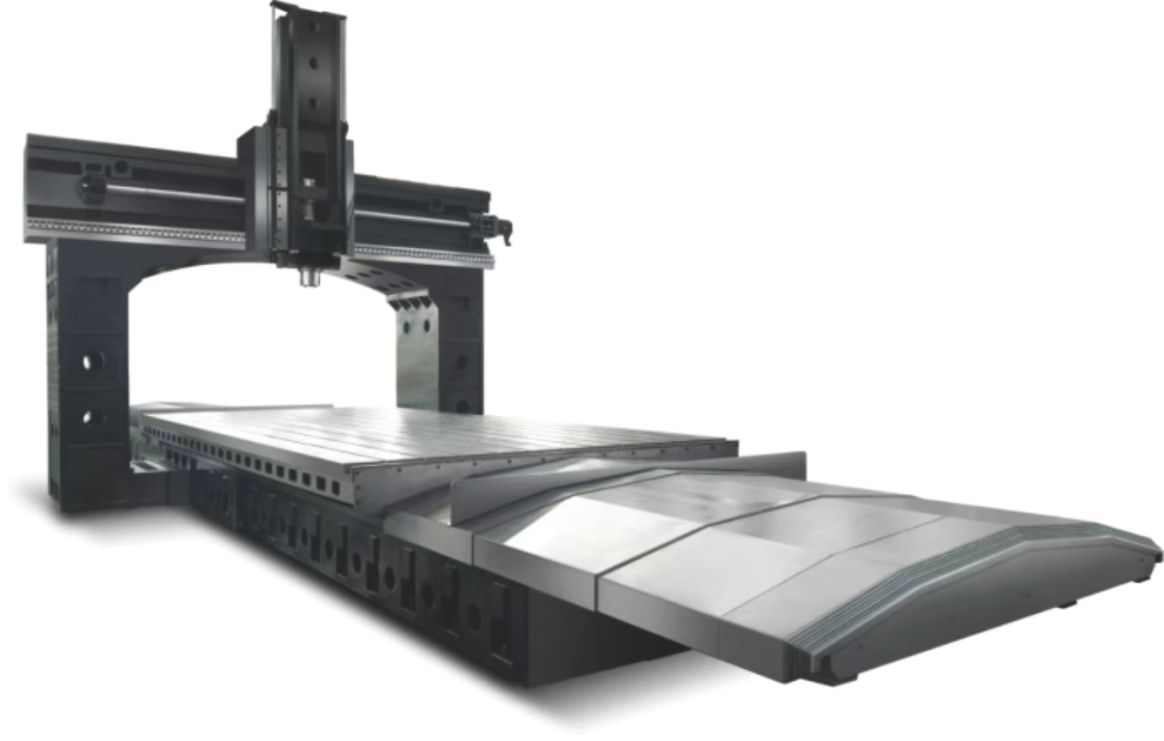

Gantry machining center

Gantry machining center (X/Y Linear guide way Z Box way)

    1.High rigidity

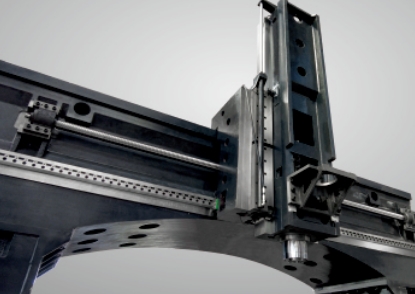

• X-Y Linear CNC gantry machining center, three-axis rapid movement, enhancethe overall mobility of the machine, is the best tool for medium and large-sizedmachining parts, The thick cross-section design of the beam greatly improvesthe structural rigidity of the Y-axis machining, and the adoption of bidirectionalequal-load ball bearing guideway ensures the maximum cutting rigidity of theY-axis support.

• X-axs dual-rail ball-bearing linear rail design, large span slide configuration,uniformn distribution of load bearing, with a wide base structure, effectively enhance the loading capacity and precision of the movement, to enhance the performance and life of the machine.

• Z-axs adopts nitrogen counterweight, oil and gas separation type pressure accumulator nitrogen counterweight device, without the traditional mechanical hydraulic commutation delay phenomenon, Z-axis up to 0.5G acceleration performance, external power failure Z-axis anti-slip device, to provide the moststable perormance of mold processing.

• Z-axis square slide: combined with precision spade technology to ensure the best mechanical rigidity and friction characteristics of the movement, the use of direct lubrication lubrication design to ensure 100% lubrication reliability.

    2.Applications

• Provides sufficient tool magazine capacity to meet a variety of machining needsand greatly irproves cutting efficiency.

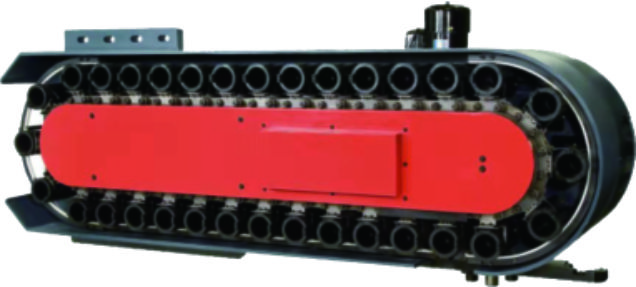

    3.Chain tool magazine

• The main transmission part is designed in cooperation with top intemational brands,adopting large transmission ratio and two-speed gearbox to realize high speed and high torgue of the spindle at the sametime.

   4.High-speed feed system

• Adopting high-speed mute screw, with linear rolling guide way, stable movement without crawling, greatty improing the spindle running speed.

   5.Sliding saddle lightweight design

• Lightwveight design of moving parts, good machine tool machining response performance,which is conducive to high-speed interpolation machining.

   6.High-speed vibration control

• Based on years of data accumulation, MEGNl has formulated strict inspection standards to detect and regulate the vibration value of the spindle at warious speeds to ensure the spindle's high-speed operation perfommance

Work bench：

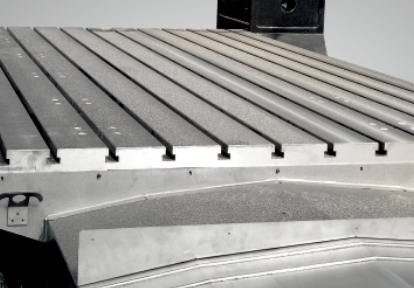

The bench adopts a double-layer reinforcedribbed hollow vibration-suppressingstructure design, which will not be deformedven under long-time exteme loads
ensuring stable machining accuracy.

Dual symmetrical counterweight：

Double symmetrical counterveight on Z-axiscrew eliminates unoalanced moments andensures accurate micro-feeding and longlasting machining precision.

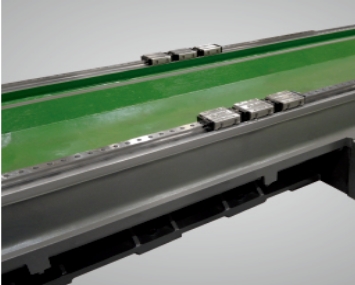

Linear guide way：

Adoption of high rigidity and heavy loadcapacity of the roller linear guide waystructure optimized symmetrical designmore stability in the process of movement ofthe base on both sides of the configurationof the integrated casting discharge slot
