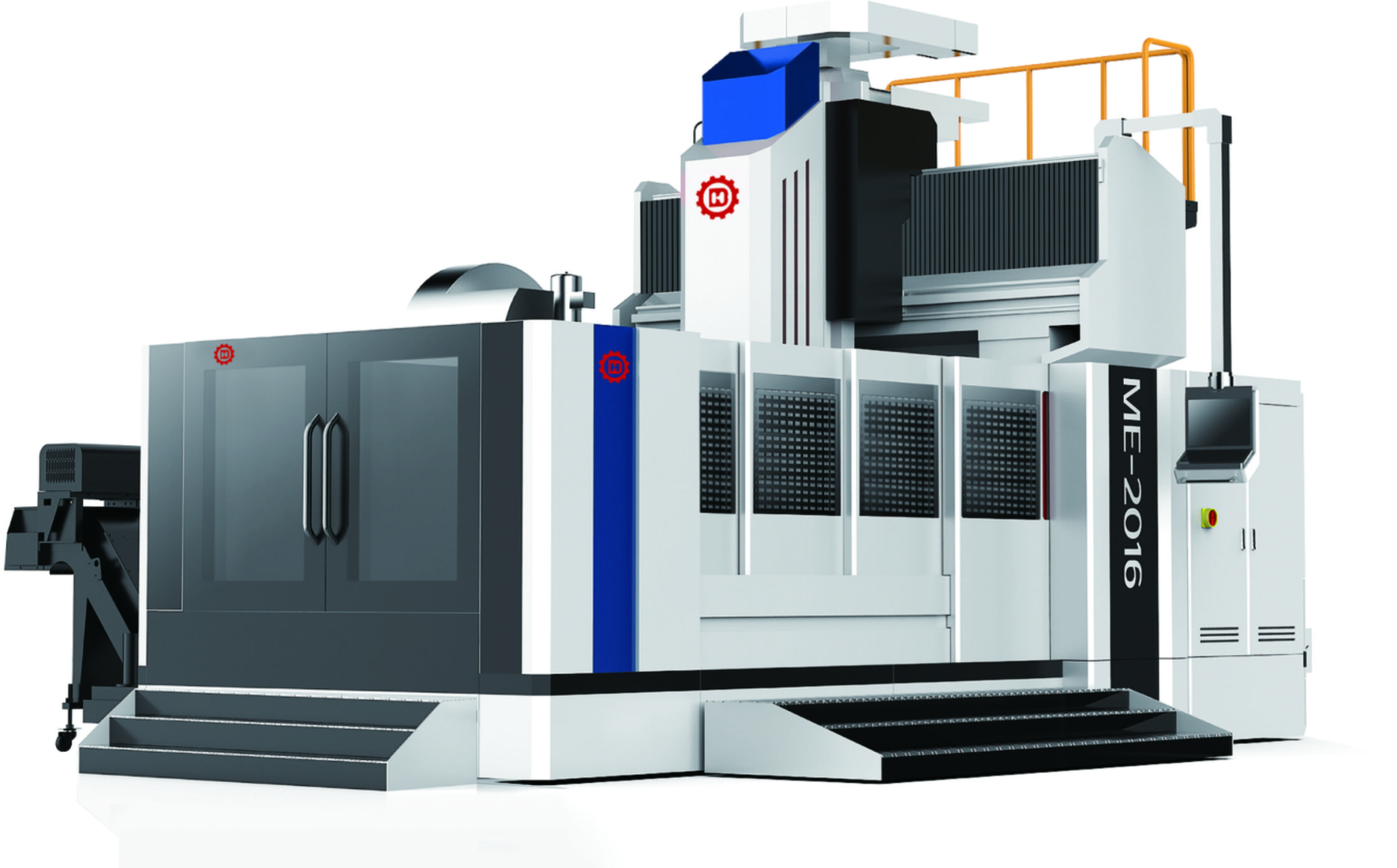

Gantry machining center

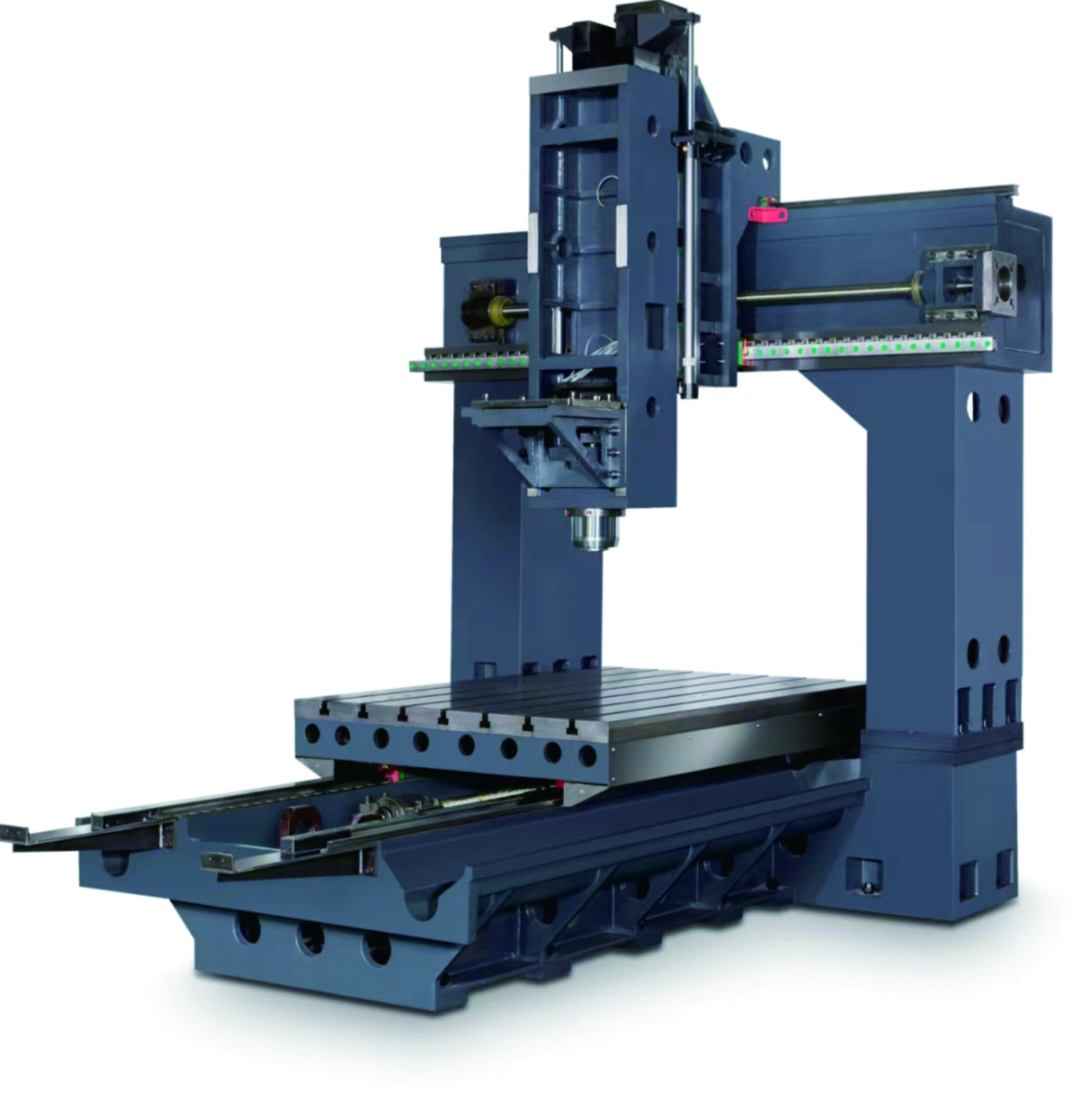

The machine body structure adopts full-supporting design, and the key stress parts areanatyzed by FEA computer simulation solidstructure, which can fully withstand the rigidityre quirements of cutting. The crossbeam adoptsone-piece gantry structure and increases thes pport area to ensure the cutting stability ofthe spindie running at high speed, which canimprove the rigidity, stability and service life ofproce sing,and the configuration of highspeed spindle can eassly meet the high rigiditycutting  requirements of hardened alloy steel.





Adopting Switzerland or Taiwan originalimported first-class high-precision linear guideway and ball screw,to ensure the overal!structure of the various geometric accuracy aswell as positioning accuracy, stability andservice life, the best drive adopts the first-classim ported brand, both the output torque andpositioning accuracy,are better thancompetitors of the same level High-speed drect-connected spindle, reasonable structuraldesign fully ensure that the spindle in highspeed continuous operaton, can maintain





The maximum running speed of three axes of the machinecan reach 12m/min, cutting speed can reach 0-10m/min,shorten the processing running time, improve the working efficiency, the spindle in the adjustment of the running cutting,to ensure the high torgue output and goodaccuracy and reliability, in the high-speed cutting conditions,to complete the processing task with bettele ffidiency







The column mounting surace and base are made of one-piecemolded castings with a thero-symmetrical design to meet thedemands of year-round processing and maintain outstanding peromance.





The double column gantry symmetrical design supports the Y-axis feed stably and evenly distributes weight, vibration, andheat from the upper part of the machine, enabling stable machining even over long periods of time. in addition, theshortest distance between the guideway surface and the centerof the spindle maintains rigidity and improves machining precision.

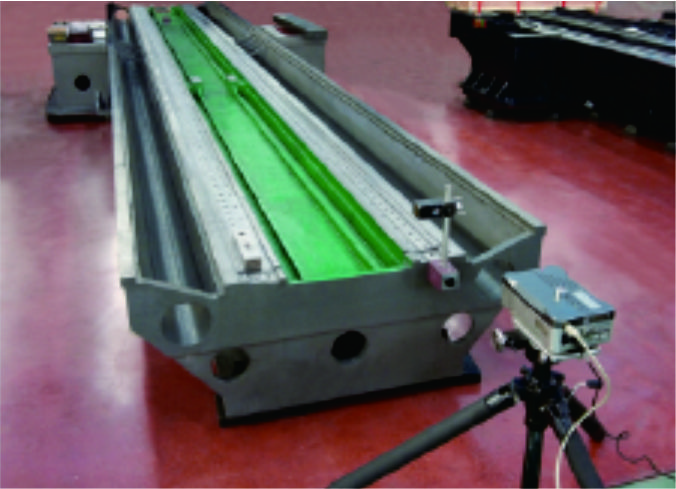

Laser collimator inspection of gantry base line rail machining surface accuracy

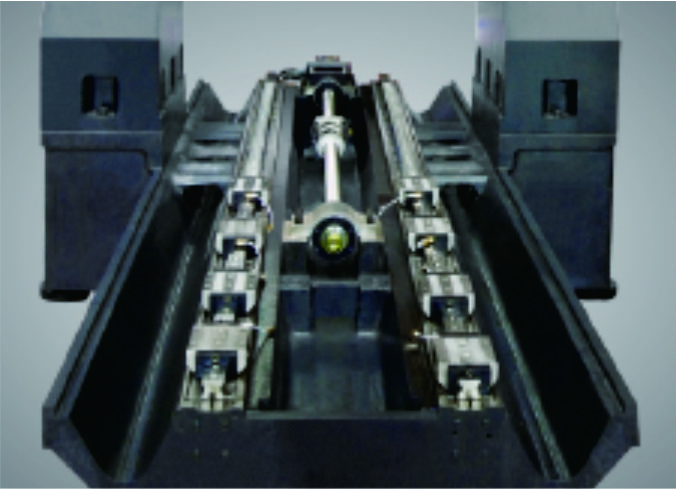

Installation of gantry screws and linear guideway

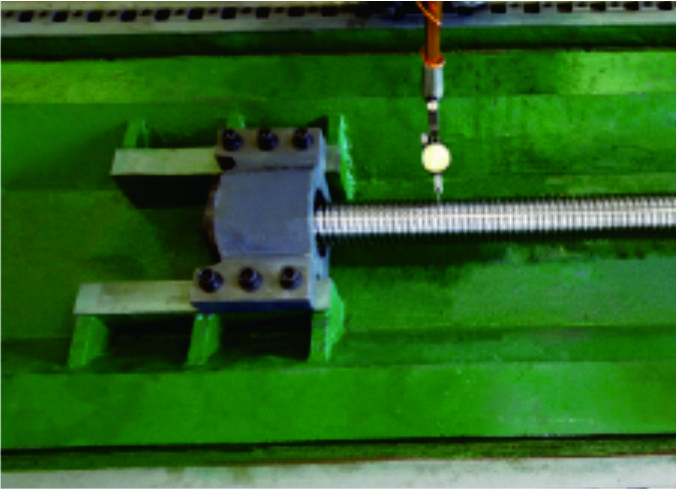

Gantry Screw Precision Tuning
