CNC Double Head Gantry Milling Machine
BH-1215MASS
CNC Double Head Vertical Milling Machine
Automatic Measurement & Cutting
Automatic Measurement & Cutting
Quantity:

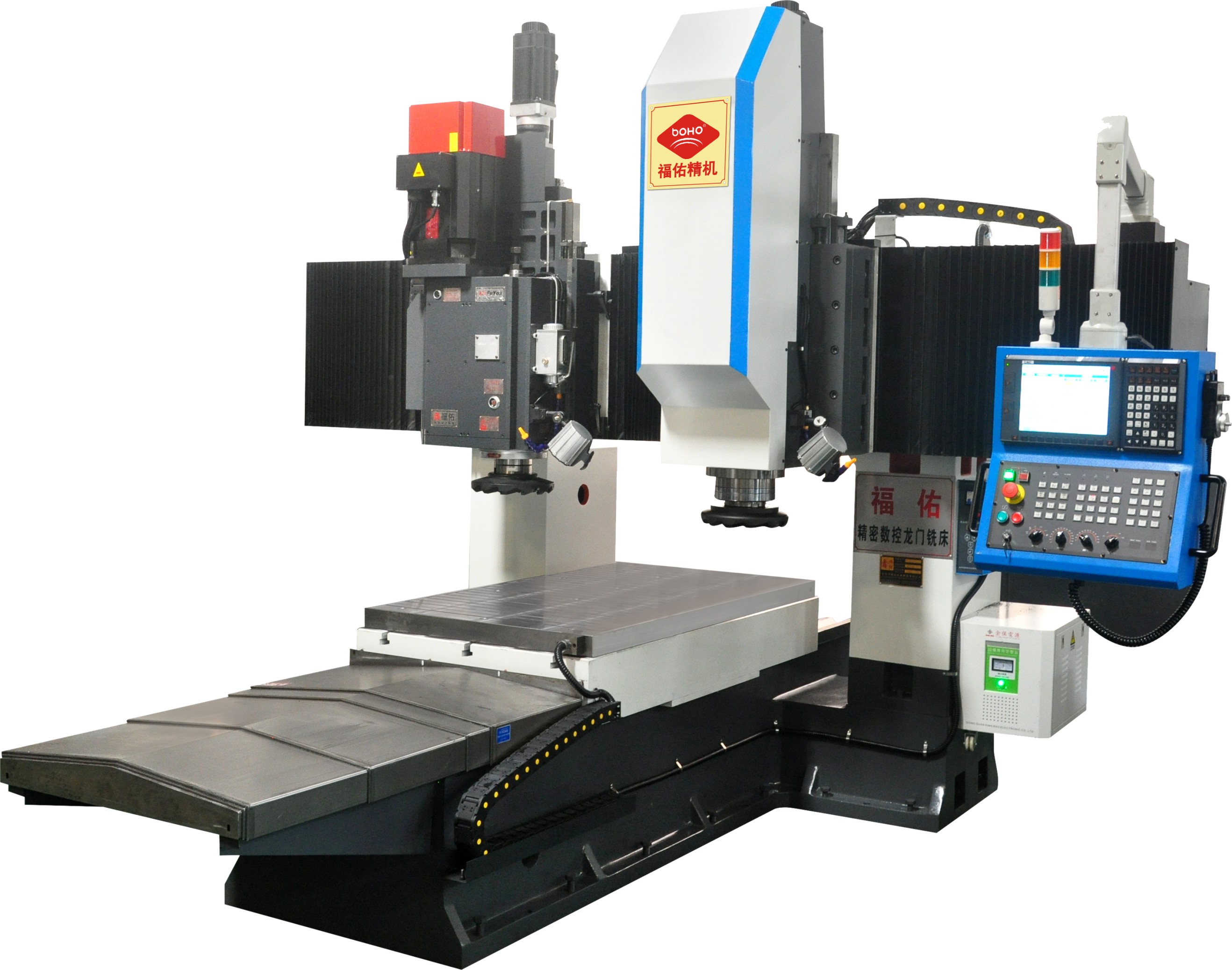

BOHO CNC Double Head Gantry Milling Machine
CNC Double Head Vertical milling machine
BH-1215MASS
Advantages of BOHO vertical milling
- Automatically measure, automatically processing and excellent surface performance.
- One loading and one setting needed only is helpful to shorten the preparation time.
- Mainly used for pre-squared steel pate and non-ferrous metal materials for flat surface.
- Maintain high accuracy for dimension, squareness and parallelism.
| Item | Unit | BH-1215MASS | |
| Size Parameter | Max milling area | mm | 1500*800 |
| Max height of milling | mm | 400 | |
| Worktable size | mm | 1500*800 | |
| Max weight of milling | mm | 800 | |
| Three-axis Servo Motor | X axis servo motor | N·m | 15 |
| Y1/Y2 axis servo motor | N·m | 10 | |
| Z1/Z2 axis servo motor | N·m | 15 | |
| Feed Speed | X axis feed speed | M/min | 0~6 |
| Y1/Y2 axis feed speed | M/min | 0~4 | |
| Z1/Z2 axis feed speed | M/min | 0~3 | |
| Milling Head Parameter | Power | KW | 15 |
| Variable gear position | / | CVT | |
| Milling head speed | rpm | 0~500 | |
| Spindle taper | / | BT50 | |
| Other Parameter | Load | KG | 4000 |
| cover area | mm | 5000*3800 | |
| Overall height of machine tool | mm | 2700 | |
| Machine weight | kg | 10000 | |
BOHO Machinery vertical milling can be carried out on any of the following materials:
- Steel
- Stainless steel
- Tool steels
- Hot work die steel
- Cold work tool steel
- Plastic mold steel
- Raw metal
- Aluminum
- Ferrous or non-ferrous metals
- Cast iron
- Mold plate
