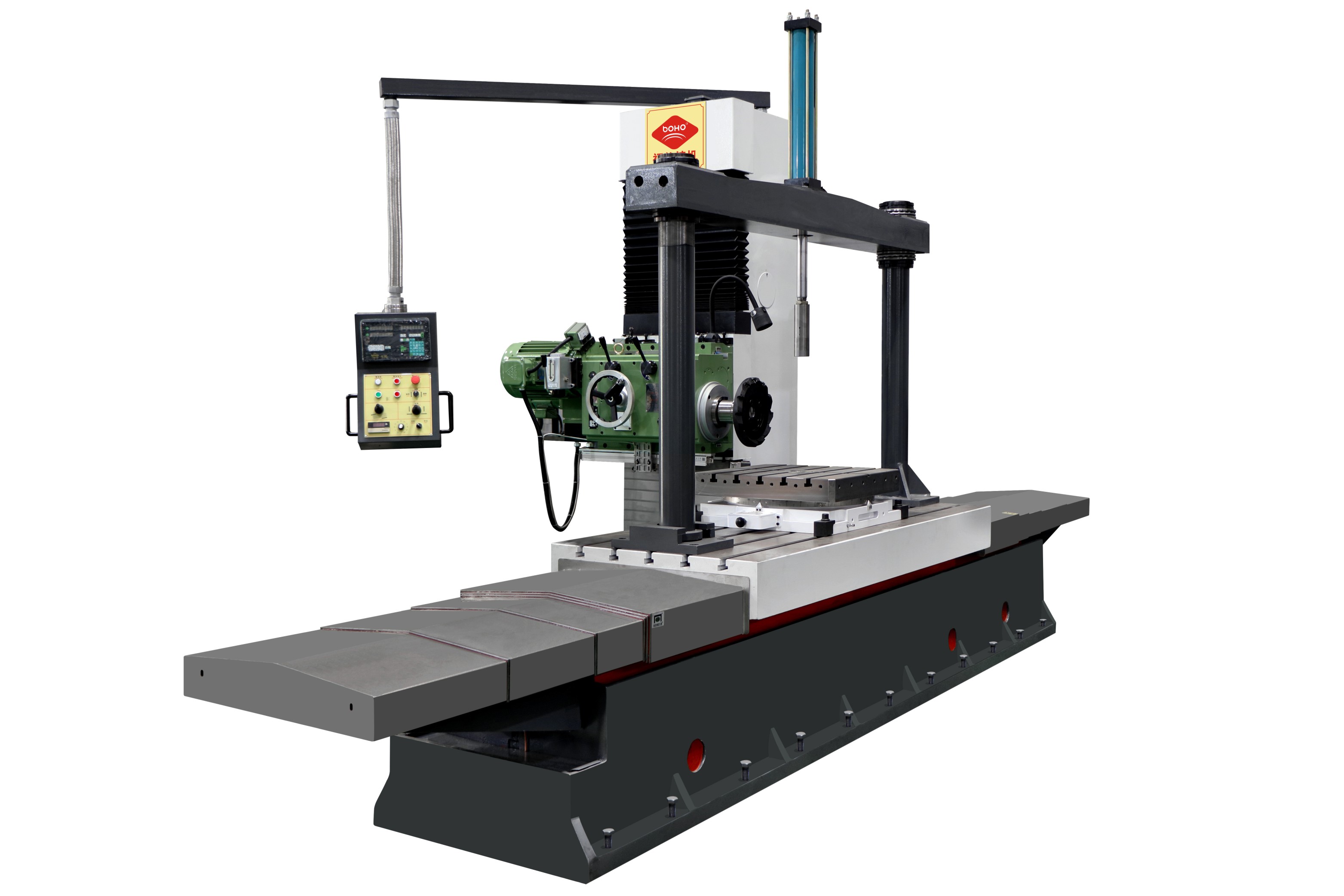

Precision Horizontal Milling Machine

BH-1230MB

Advantages of BOHO horizontal milling

Mainly used for pre-squared steel pate and non-ferrous metal materials for flat surface.
Maintain high accuracy for dimension, squareness and parallelism.

Item		Unit	BH-2000MB
Size Parameter	Milling range	mm	70-2000
	Max milling height	mm	800
	Worktable size	mm	2000*800
	Max ratate diameter	mm	φ1500
Worktable	Worktable motor	KW	2.2
Worktable	Speed of worktable	M/min	0~5
Milling Head Parameter	Power	HP	20
	Variable gear position	/	6
	Milling head speed	rpm	55-345
	Spindle taper	/	BT50
Other Parameter	Load	KG	5000
	cover area	mm	5600*3300
	Overall height of machine tool	mm	2800
	Machine weight	KG	10000

BOHO Machinery vertical milling can be carried out on any of the following materials:

Steel
Stainless steel
Tool steels
Hot work die steel
Cold work tool steel
Plastic mold steel
Raw metal
Aluminum
Ferrous or non-ferrous metals
Cast iron
Mold plate

BOHO MACHINERY (DONGGUAN) CO., LTD. offers a wide selection of precision CNC machines. With years of expertise specializing in CNC Milling Machines, horizontal milling machine, and CNC Grinding Machines, we provide one-stop customization service—featuring high-performance models like the BH-2000MB—all at competitive factory prices. Request your inquiry now!
